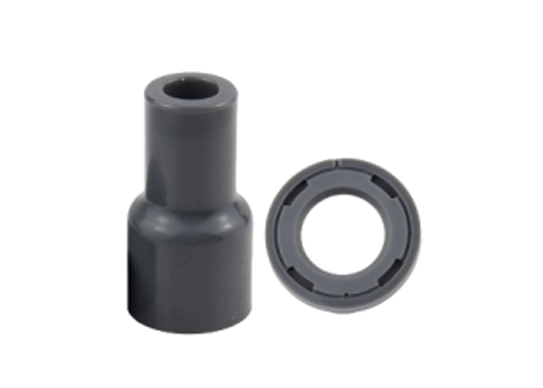

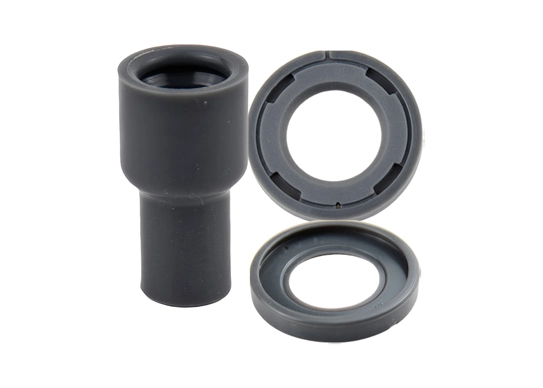

Name: OE NO.90919-02240 Ignition Coil Boot For Toyota Yaris
Brand: Axis (xi'an)Technology Co.,Ltd.

OE NO.90919-02240 Ignition Coil Boot For Toyota Yaris

Perfect Fit For:

Contact with Us

Tel:

E-mail:

Add:

Room 502, Block D, Galaxy Huating, No. 149 Weiyang Road, Xi'an, Shaanxi Province, China

Axis

For inquiries about our rubber sealing products, please fill out the form below, and we will respond promptly.

Popular Ignition Coil Boot

03 Aug

03 Aug

03 Aug

Product Name		Ignition Coil Boot For 2000-2016 Toyota & Scion xA xB I4 90919-02240
OE Number		9008019021 0997002550 9091902240 9091902265 90919T2007 90919W2002 9091902229 9091902270
Compatibility		2004, 2005, 2006 Scion xA 1.5L I4 2004, 2005, 2006 Scion xB 1.5L I4 2005 Toyota Camry 2.4L I4 2000, 2001, 2002, 2003, 2004, 2005 Toyota Echo 1.5L I4 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Toyota Prius 1.5L I4 2012, 2013, 2014 Toyota Prius C 1.5L I4 2004 Toyota Yaris 1.3L I4 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 Toyota Yaris 1.5L I4
Material		Silicone Rubber
Temperature Rang		Continuous: -40°C ~ +200°C
Voltage Resistance		Dry: ≥30 kV Wet: ≥15 kV（95% RH）
Hardness (Shore A)		55 Shore A

High-Temperature Stability		Temperature Range: -40°C ~ +200°C (peak 230°C), ideal for turbocharged engines. Thermal Aging: ≤10% hardness change & ≥85% elasticity retention after 500h at 200°C.
High-Voltage Insulation		Withstands 30 kV (dry) & 15 kV (wet), prevents arcing. Anti-arcing inner texture reduces charge accumulation, compatible with EA888 Gen3 ignition.
Chemical Resistance		Resists ethanol-blended fuels (E10/E20) with ≤8% volume swelling. Resistant to coolant vapors (ethylene glycol-based)

OE NO.90919-02240 Ignition Coil Boot For Toyota Yaris
