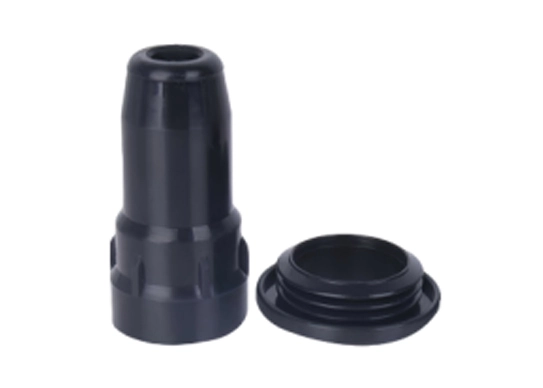

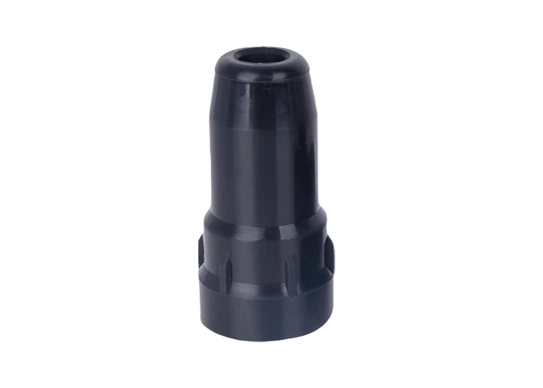

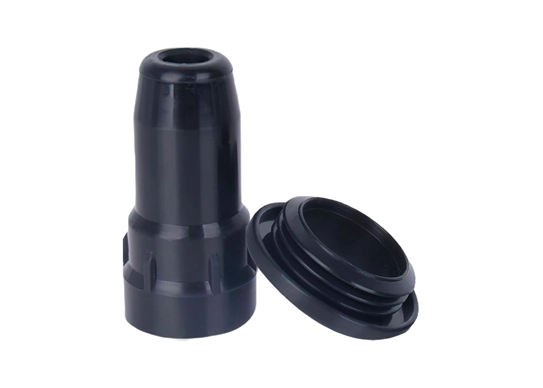

Name: OE NO.55571790 Ignition Coil Boot For Excelle、Cruze
Brand: Axis (xi'an)Technology Co.,Ltd.

OE NO.55571790 Ignition Coil Boot For Excelle、Cruze

Contact with Us

Tel:

E-mail:

Add:

Room 502, Block D, Galaxy Huating, No. 149 Weiyang Road, Xi'an, Shaanxi Province, China

Axis

For inquiries about our rubber sealing products, please fill out the form below, and we will respond promptly.

Popular Ignition Coil Boot

03 Aug

03 Aug

03 Aug

Product Name		OEM Ignition Coil Boot For Chevy Aveo Cruze Sonic 1.6L 1.8L L4 UF620
OE Number		55571790 55584745 24107493 25186687 UF620
Compatibility		2009-2011 CHEVROLET AVEO 2009-2011 CHEVROLET AVEO5 2010-2015 CHEVROLET CRUZE 2012-2015 CHEVROLET SONIC 2013 CHEVROLET TRAX 2007-2010 PONTIAC G3 2009 PONTIAC G3 WAV
Material		Silicone Rubber
Temperature Rang		Continuous: -40°C ~ +200°C
Voltage Resistance		Dry: ≥30 kV Wet: ≥15 kV（95% RH）
Hardness (Shore A)		55 Shore A
Dimensions		（ID）: 14.0mm ±0.3 （OD）: 22.5mm ±0.5 （Length）: 75mm ±2

High-Temperature Stability		Temperature Range: -40°C ~ +200°C (peak 230°C), ideal for turbocharged engines. Thermal Aging: ≤10% hardness change & ≥85% elasticity retention after 500h at 200°C.
High-Voltage Insulation		Withstands 30 kV (dry) & 15 kV (wet), prevents arcing. Anti-arcing inner texture reduces charge accumulation, compatible with EA888 Gen3 ignition.
Chemical Resistance		Resists ethanol-blended fuels (E10/E20) with ≤8% volume swelling. Resistant to coolant vapors (ethylene glycol-based)

OE NO.55571790 Ignition Coil Boot For Excelle、Cruze
