Premium fuel injector o rings, injector o rings, fuel pump o ring and complete fuel system sealing solutions for gasoline and diesel engines.
Fuel Injector O-Rings • Fuel Pump Seals • Diesel O-Rings
| Axis Rubber manufactures top-quality fuel injector o rings, injector o rings, fuel pump o ring, fuel line o ring, and diesel injector o rings for demanding automotive and diesel applications. Our O-rings provide excellent resistance to gasoline, diesel, ethanol blends, biodiesel, and high temperatures, ensuring leak-free performance and long service life in fuel delivery systems. |
| Fuel Injectors | Fuel Pumps & Rails | Fuel Lines & Filters |
| Fuel injector o rings, injector rings and injector seal kits. | Fuel pump o ring, fuel pump seal ring, fuel rail o ring. | Fuel line o ring, fuel line quick connect o ring, fuel filter o ring, fuel tank o ring. |
While they may be some of the smallest and least expensive components in a vehicle, Fuel O-Rings shoulder a massive responsibility. In modern internal combustion engines, fuel systems operate under extreme pressures, high temperatures, and harsh chemical environments. O-rings serve as the primary defense against fuel leaks, vacuum leaks, and loss of pressure.

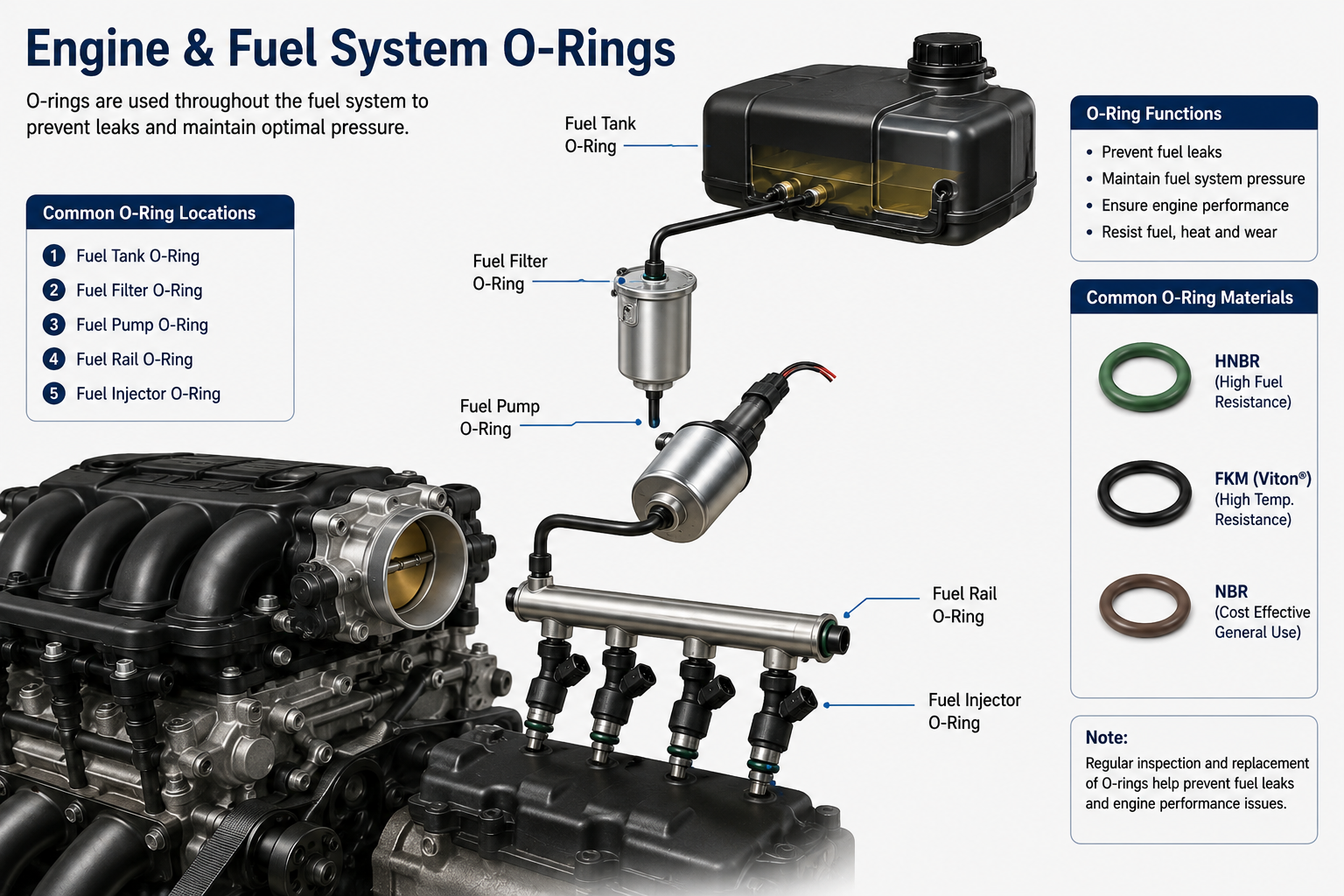

Within the engine and fuel system, fuel O-rings are categorized into three main application areas: Fuel Injectors, Fuel Pumps & Rails, and Fuel Lines & Filters. Here is a detailed breakdown of how these vital seals are applied in each area.

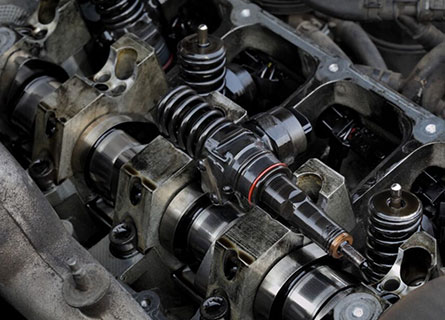

Fuel injectors are responsible for delivering a highly pressurized, precise mist of fuel directly into the intake manifold or combustion chamber. Because they sit directly on the engine block, the O-rings here are subjected to intense engine heat and vibration.
Fuel Injector O-Rings: Every fuel injector typically features two primary O-rings—an upper and a lower. The upper O-ring seals the injector against the pressurized fuel rail, preventing highly flammable fuel from spraying onto a hot engine. The lower O-ring seals the injector into the intake manifold or cylinder head, preventing unmetered air from entering the engine (which would cause a vacuum leak, leading to engine misfires and rough idling).
Injector Rings & Spacers: Aside from standard O-rings, injectors often utilize specialized backup rings or spacers. These help center the injector in its port and prevent the primary O-ring from extruding or deforming under high fuel pressure.
Injector Seal Kits: Whenever a fuel injector is removed for cleaning, testing, or engine maintenance, the old O-rings must be discarded. Injector seal kits provide all the necessary O-rings, pintle caps, and micro-filters required to completely refurbish the seal, ensuring the engine runs at peak efficiency without dangerous fuel leaks.
Before fuel reaches the injectors, it must be pumped from the tank and distributed evenly. This section of the fuel system is under constant hydraulic pressure, making high-quality seals absolutely essential.
Fuel Pump O-Ring / Seal Ring: The fuel pump sits inside (or sometimes outside) the fuel tank. A heavy-duty fuel pump O-ring or seal ring is used to seal the pump assembly housing against the tank itself. If this seal fails, it can result in raw liquid fuel spilling over the top of the tank during a fill-up, or the escape of harmful fuel vapors, which will trigger an EVAP (Evaporative Emission Control) system failure and a Check Engine Light.
Fuel Rail O-Ring: The fuel rail acts as a manifold that distributes pressurized fuel equally to all the injectors. O-rings are used at the ends of the fuel rail, at pressure regulators, and at pulsation dampers attached to the rail. In modern Gasoline Direct Injection (GDI) systems, fuel rail O-rings must withstand extreme pressures—often exceeding 2,000 PSI—requiring highly specialized, extrusion-resistant materials.
Moving fuel safely from the rear of the vehicle to the hot engine bay requires a network of lines, connections, and filters—all of which rely on O-rings to remain leak-free.
Fuel Line O-Ring & Quick Connect O-Rings: Modern automotive manufacturing heavily relies on "quick-connect" fittings for fuel lines. Inside these plastic or metal fittings sit tiny, precision-engineered fuel line O-rings. They allow for rapid assembly on the factory floor and easy maintenance, but they must maintain a perfect seal as the fuel lines flex and vibrate while the vehicle is in motion.
Fuel Filter O-Ring: Fuel filters trap dirt, rust, and debris before they can clog the microscopic nozzles of the fuel injectors. Many vehicles use cartridge-style fuel filters housed in a permanent canister. The cap of this canister is sealed with a specific fuel filter O-ring. A failure here causes severe fuel pressure drops, resulting in an engine that cranks but refuses to start.
Fuel Tank O-Ring: Often part of the fuel sender or fuel pump module assembly, this large-diameter O-ring seals the access port at the top of the fuel tank. It is crucial for keeping the highly volatile fuel safely contained inside the tank, especially in the event of a vehicle rollover.
Choosing the correct O-ring material is critical for achieving reliable sealing performance in automotive engine and fuel system applications. Different operating environments require fuel-resistant O-rings that can withstand gasoline, diesel, ethanol blends, high temperatures, pressure fluctuations, and continuous engine vibration. Our automotive O-rings are manufactured using high-quality elastomer materials such as NBR O-rings for cost-effective fuel sealing, FKM O-rings for high-temperature and chemical resistance, and HNBR O-rings for modern engines using higher ethanol-content fuels. Available in both standard and custom O-ring sizes, our engine and fuel system O-rings are widely used in fuel injectors, fuel pumps, air conditioning systems, and various automotive sealing applications.
| Recommended Materials | Key Advantages |
| NBR (Nitrile Rubber) |
|
| Excellent cost-effective choice for gasoline and diesel fuel systems. | |
| FKM / Viton (Fluoroelastomer) | |
| Premium high-temperature and aggressive fuel resistance (ethanol, biodiesel). | |
| HNBR | |
| Enhanced performance for modern fuel systems with higher ethanol content. |
FKM (Viton) offers the best long-term resistance, especially with high-ethanol fuels. NBR is a reliable and economical choice for standard applications.
Yes, we manufacture heavy-duty diesel injector O-rings and complete diesel fuel system seal kits.
Absolutely. We support custom sizes, materials, and hardness according to your drawings or samples.
Strict quality control and full traceability.
Tested with gasoline, diesel, and ethanol blends.
Standard sizes in stock, custom orders welcome.
Contact our team for technical support, competitive pricing, and fast delivery.
