Name: OE NO.24100593 Ignition Coil Boot For Buick Envision
Brand: Axis (xi'an)Technology Co.,Ltd.

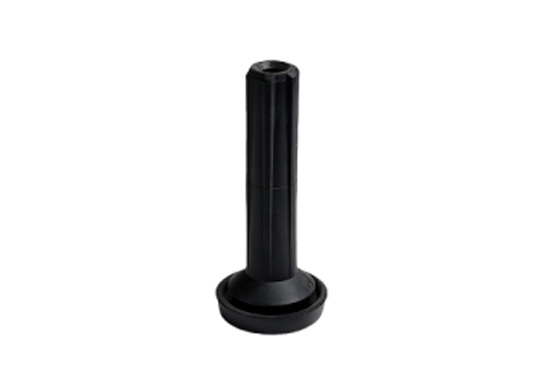

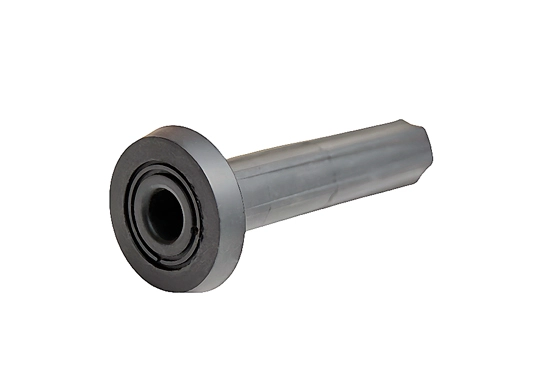

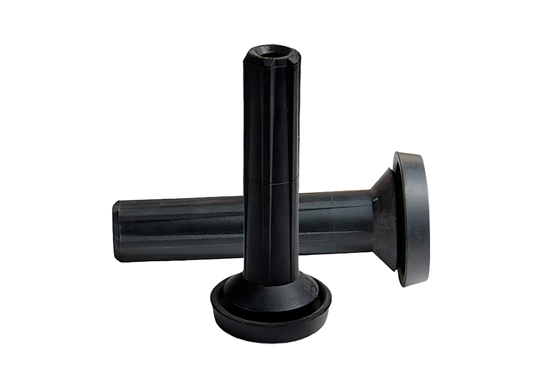

OE NO.24100593 Ignition Coil Boot For Buick Envision

Extreme temperature resistance (-40°C to +200°C peak 230°C) for turbocharged engines
Maintains 85%+ elasticity after 500 hours at 200°C
30kV dry/15kV wet voltage insulation with anti-arcing texture
Ethanol-resistant (E10/E20) silicone with ≤8% swelling
Precision dimensions (11mm ID/20.5mm OD) for perfect LFF engine fit

Contact with Us

Tel:

E-mail:

Add:

Room 502, Block D, Galaxy Huating, No. 149 Weiyang Road, Xi'an, Shaanxi Province, China

Axis

For inquiries about our rubber sealing products, please fill out the form below, and we will respond promptly.

Popular Ignition Coil Boot

Product Name		Ignition Coil Boot 24100593 24106074 FK0466 For Buick Encore 1.4T
OE Number		FK0466 24100593 24106074
Compatibility		Buick Encore 2013-2016 Chevrolet Chuangku 1.4T Engine Model: LFF Time: 201301-present 1.4T (330T) Engine Model: LFF Time: 201610-present
Material		Silicone Rubber
Temperature Rang		Continuous: -40°C ~ +200°C
Voltage Resistance		Dry: ≥30 kV Wet: ≥15 kV（95% RH）
Hardness (Shore A)		55 Shore A
Dimensions		（ID）: 11.0mm ±0.3 （OD）: 20.5mm ±0.5 （Length）: 70mm ±1.5

High-Temperature Stability		Temperature Range: -40°C ~ +200°C (peak 230°C), ideal for turbocharged engines. Thermal Aging: ≤10% hardness change & ≥85% elasticity retention after 500h at 200°C.
High-Voltage Insulation		Withstands 30 kV (dry) & 15 kV (wet), prevents arcing. Anti-arcing inner texture reduces charge accumulation, compatible with EA888 Gen3 ignition.
Chemical Resistance		Resists ethanol-blended fuels (E10/E20) with ≤8% volume swelling. Resistant to coolant vapors (ethylene glycol-based)

OE NO.24100593 Ignition Coil Boot For Buick Envision
